1.
Write a note on
Principles of Object Oriented Systems.
Ans.- The object model comes with a lot of
terminology. A Smalltalk programmer uses methods, a C++ programmer uses virtual
member functions, and a CLOS programmer uses generic functions. An Object
Pascal programmer talks of a type correct, an Ada programmer calls the same
thing a type conversion. To minimize the confusion, let‟s see what object
orientation is.
Bhaskar
has observed that the phrase object-oriented “has been bandied about with
carefree abandon with much the same reverence accorded „motherhood,‟ „apple
pie,‟ and „structured programming‟”. We can agree that the concept of an object
is central to anything object-oriented. Stefik and Bobrow define objects as
“entities that combine the properties of procedures and data since they perform
computations and save local state”. Defining objects as entities asks the
question somewhat, but the basic concept here is that objects serve to unify
the ideas of algorithmic and data abstraction. Jones further clarifies this
term by noting that “in the object model, emphasis is placed on crisply
characterizing the components of the physical or abstract system to be modeled
by a programmer system…. Objects have a certain „integrity‟ which should not –
in fact, cannot – be violated. An object can only change state, behave, be
manipulated, or stand in relation to other objects in ways appropriate to that
object. An object is characterized by its properties and behavior.
Object-Oriented
Programming:- Object-oriented
programming is a method of implementation in which programs are organized as
cooperative collections of objects, each of which represents an instance of
some class, and whose classes are all members of a hierarchy of classes united
via inheritance relationships.
There are three important parts to this
definition: object-oriented programming (1) uses objects, not algorithms, as
its fundamental logical building blocks (2) each object is an instance of some
class, and (3) classes are related to one another via inheritance
relationships.
Object-Oriented
Design:- Generally,
the design methods emphasize the proper and effective structuring of a complex
system. Let‟s see the explanation for object oriented design.
Object-oriented
design is a method of design encompassing the process of object-oriented
decomposition and a notation for depicting both logical and physical as well as
static and dynamic models of the system under design.
There are two important parts to this
definition: object-oriented design (1) leads to an object-oriented
decomposition and (2) uses different notations to express different models of
the logical (class and object structure) and physical (module and process
architecture) design of a system, in addition to the static and dynamic aspects
of the system.
Object-Oriented
Analysis:- Object-oriented
analysis (or OOA, as it is sometimes called) emphasizes the building of
real-world models, using an object-oriented view of the world. Object-oriented
analysis is a method of analysis that examines requirements from the
perspective of the classes and objects found in the vocabulary of the problem
domain.
2.
What are
objects? Explain characteristics of objects.
Ans.- The term object was first formally
utilized in the Simula language. The term object means a combination of data
and logic that represents some real world entity.
When
developing an object-oriented application, two basic questions always rise:
What
objects does the application need?
What
functionality should those objects have?
Programming
in an object-oriented system consists of adding new kinds of objects to the
system and defining how they behave.
The
different characteristics of the objects are:
i) Objects are
grouped in classes:-
A class is a set of objects that share a common structure and a common
behavior, a single object is simply an instance of a class. A class is a
specification of structure (instance variables), behavior (methods), and
inheritance for objects.

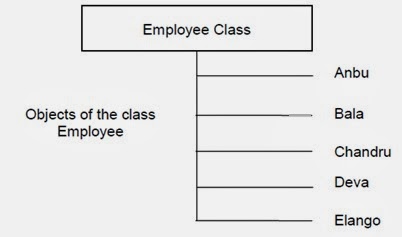

Anbu,
Bala, Chandru, Deva, and Elango are instances or objects of the class Employee
Attributes: Object state and properties
Properties represent the state of an
object. For example, in a car object, the manufacturer could be denoted by
a name, a reference to a manufacturer object, or a corporate tax identification
number. In general, object’s abstract state can be independent of its physical
representation.
The attributes
of a car object
ii) Objects have
attributes and methods:- A method is a function or procedure that is defined
for a class and typically can access the internal state of an object of that
class to perform some operation. Behavior denotes the collection of methods
that abstractly describes what an object is capable of doing. Each procedure defines
and describes a particular behavior of the object. The object, called the
receiver, is that on which the method operates. Methods encapsulate the
behavior of the object. They provide interfaces to the object, and hide any of
the internal structures and states maintained by the object.
iii) Objects
respond to messages:-
Objects perform operations in response to messages. The message is the
instruction and the method is the implementation. An object or an instance of a
class understands messages. A message has a name, just like method, such as
cost, set cost, cooking time. An object understands a message when it can match
the message to a method that has a same name as the message. To match up the
message, an object first searches the methods defined by its class. If it is
found, that method is called up. If not found, the object searches the
superclass of its class. If it is found in a superclass, then that method is
called up. Otherwise, it continues the search upward. An error occurs only if
none of the superclasses contain the method.
Different
objects can respond to the same message in different ways. In this way a
message is different from a subroutine call. This is known as polymorphism, and
this gives a great deal of flexibility. A message differs from a function in
that a function says how to do something and a message says what to do.
Example: draw is a message given to different objects.
Objects respond
to messages according to methods defined in its class.
3.
What are
behavioral things in UML mode? Explain two kinds of behavioral things.
Ans.- Behavioral things are the dynamic
parts of UML models. These are the verbs of a model, representing behavior
over time and space. In all, there are two primary kinds of behavioral things.
1.
Interaction
2.
State Machine
Interaction: An interaction is a behavior that
comprises a set of messages exchanged among a set of objects within a
particular context to accomplish a specific purpose. The behavior of a society
of objects or of an individual operation may be specified with an interaction.
An interaction involves a number of other elements, including messages, action
sequences (the behavior invoked by a message), and links (the connection
between objects). Graphically, an interaction (message) is rendered as a
directed line, almost always including the name of its operation, as in below Figure.
Interaction
(message)
State Machine: A state machine is a behavior
that specifies the sequences of states an object or an interaction that goes
through during its lifetime in response to events, together with its responses
to those events. The behavior of an individual class or a collaboration of
classes may be specified with a state machine. A state machine involves a
number of other elements, including states, transitions (the change from one
state to another state), events (things that trigger a transition), and
activities (the response to a transition). Graphically, a state is rendered as
a rounded rectangle, usually including its name and its sub states, if any, as
in below Figure.
State
4.
Write a short
note on Class-Responsibility-Collaboration (CRC) Cards.
Ans.- A Class Responsibility
Collaborator (CRC) model (Beck
& Cunningham 1989; Wilkinson 1995; Ambler 1995)
is a collection of standard index cards that have been divided into three
sections, as depicted in Figure
1. A class represents a collection of similar objects, a
responsibility is something that a class knows or does, and a collaborator is
another class that a class interacts with to fulfill its
responsibilities. Figure
2 presents
an example of two hand-drawn CRC cards.
Figure 1. CRC Card Layout.
Figure 2. Hand-drawn CRC Cards.
Although
CRC cards were originally introduced as a technique for teaching
object-oriented concepts, they have also been successfully used as a
full-fledged modeling technique. My experience is that CRC models are an
incredibly effective tool for conceptual modeling as well as for detailed
design. CRC cards feature prominently in eXtreme Programming (XP) (Beck
2000) as a design technique. My
focus here is on applying CRC cards for conceptual modeling with your
stakeholders.
A
class represents a collection of similar objects. An object is a person, place,
thing, event, or concept that is relevant to the system at hand. For example,
in a university system, classes would represent students, tenured professors,
and seminars. The name of the class appears across the top of a CRC card and is
typically a singular noun or singular noun phrase, such as Student, Professor,
and Seminar. You use singular names because each class represents a
generalized version of a singular object. Although there may be the student
John O’Brien, you would model the class Student. The information
about a student describes a single person, not a group of people. Therefore, it
makes sense to use the name Student and not Students.
Class names should also be simple. For example, which name is better: Student or Person
who takes seminars?
A
responsibility is anything that a class knows or does. For example, students
have names, addresses, and phone numbers. These are the things a student knows.
Students also enroll in seminars, drop seminars, and request transcripts. These
are the things a student does. The things a class knows and does constitute its
responsibilities. Important: A class is able to change the values of the things
it knows, but it is unable to change the values of what other classes know.
Sometimes
a class has a responsibility to fulfill, but not have enough information to do
it. For example, as you see in Figure
3 students enroll in seminars.
To do this, a student needs to know if a spot is available in the seminar and,
if so, he then needs to be added to the seminar. However, students only have
information about themselves (their names and so forth), and not about
seminars. What the student needs to do is collaborate/interact with the card
labeled Seminar to sign up for a seminar. Therefore, Seminar is
included in the list of collaborators of Student.
Figure 3. Student CRC card.
Collaboration
takes one of two forms: A request for information or a request to do something.
For example, the card Student requests an indication from the
card Seminar whether a space is available, a request for
information.Student then requests to be added to the Seminar,
a request to do something. Another way to perform this logic, however, would
have been to have Student simply request Seminar to
enroll himself into itself. Then have Seminardo the work of
determining if a seat is available and, if so, then enrolling the student and,
if not, then informing the student that he was not enrolled.
5.
Explain Modern
Hierarchical Teams. Also draw its structure.
Ans.- As just mentioned, the problem with
traditional programmer teams is that it is all but impossible to find one
individual who is both a highly skilled programmer and a successful manager.
The solution is to use a matrix organizational structure and to replace the
chief programmer by two individuals: a team leader, who is in charge of the
technical aspects of the team‟s activities, and a team manager, who is
responsible for all non-technical managerial decisions. The structure of the resulting
team is shown in below figure.
Figure:-The
Structure of a Modern Hierarchical Programming Team
It is important to realize that this
organizational structure does not violate the fundamental managerial principle
that no employee should report to more than one manager. The areas of
responsibility are clearly delineated. The team leader is responsible for only
technical management. Thus, budgetary and legal issues are not handled by the
team leader, nor are performance appraisals. On the other hand, the team leader
has sole responsibility on technical issues. The team manager, therefore, has
no right to promise, say, that the information system will be delivered within
four weeks; promises of that sort have to be made by the team leader.
Before implementation begins, it is
important to demarcate clearly those areas that appear to be the responsibility
of both the team manager and the team leader. For example, consider the issue
of annual leave. The situation can arise that the team manager approves a leave
application because leave is a non-technical issue, only to find the
application vetoed by the team leader because a deadline is approaching. The
solution to this and related issues is for higher management to draw up a
policy regarding those areas that both the team manager and the team leader
consider to be their responsibility.
6.
Explain in brief
the five levels of CMM.
Ans.- A maturity level is a well-defined
evolutionary plateau toward achieving a mature software process. Each maturity
level provides a layer in the foundation for continuous process improvement.
In
CMMI models with a staged representation, there are five maturity levels
designated by the numbers 1 through 5
1.
Initial
2.
Managed
3.
Defined
4.
Quantitatively
Managed
5.
Optimizing
CMMI Staged Represenation- Maturity Levels
Maturity Level 1
- Initial
At
maturity level 1, processes are usually ad hoc and chaotic. The organization
usually does not provide a stable environment. Success in these organizations
depends on the competence and heroics of the people in the organization and not
on the use of proven processes.
Maturity
level 1 organizations often produce products and services that work; however,
they frequently exceed the budget and schedule of their projects.
Maturity
level 1 organizations are characterized by a tendency to over commit, abandon
processes in the time of crisis, and not be able to repeat their past
successes.
Maturity Level 2
- Managed
At
maturity level 2, an organization has achieved all the specific and generic
goals of the maturity level 2 process areas. In other words, the
projects of the organization have ensured that requirements are managed and
that processes are planned, performed, measured, and controlled.
The
process discipline reflected by maturity level 2 helps to ensure that existing
practices are retained during times of stress. When these practices are in
place, projects are performed and managed according to their documented plans.
At
maturity level 2, requirements, processes, work products, and services are
managed. The status of the work products and the delivery of services are
visible to management at defined points.
Maturity Level 3
- Defined
At
maturity level 3, an organization has achieved all the specific and generic
goals of the process areas assigned to maturity levels 2 and 3.
At
maturity level 3, processes are well characterized and understood, and are
described in standards, procedures, tools, and methods.
A
critical distinction between maturity level 2 and maturity level 3 is the scope
of standards, process descriptions, and procedures. At maturity level 2, the
standards, process descriptions, and procedures may be quite different in each
specific instance of the process (for example, on a particular project). At
maturity level 3, the standards, process descriptions, and procedures for a
project are tailored from the organization's set of standard processes to suit
a particular project or organizational unit. The organization's set of standard
processes includes the processes addressed at maturity level 2 and maturity
level 3. As a result, the processes that are performed across the organization
are consistent except for the differences allowed by the tailoring guidelines.
Maturity Level 4
- Quantitatively Managed
At
maturity level 4, an organization has achieved all the specific
goals of the process areas assigned to maturity levels 2, 3, and 4 and
the generic goals assigned to maturity levels 2 and 3.
At
maturity level 4 Subprocesses are selected that significantly contribute to
overall process performance. These selected subprocesses are controlled using
statistical and other quantitative techniques.
Quantitative
objectives for quality and process performance are established and used as
criteria in managing processes. Quantitative objectives are based on the needs
of the customer, end users, organization, and process implementers. Quality and
process performance are understood in statistical terms and are managed
throughout the life of the processes.
For
these processes, detailed measures of process performance are collected and
statistically analyzed. Special causes of process variation are identified and,
where appropriate, the sources of special causes are corrected to prevent
future occurrences.
Maturity Level 5
- Optimizing
At
maturity level 5, an organization has achieved all the specific goals of
the process areas assigned to maturity levels 2, 3, 4, and 5 and the generic
goals assigned to maturity levels 2 and 3.
Processes
are continually improved based on a quantitative understanding of the common
causes of variation inherent in processes.
Maturity
level 5 focuses on continually improving process performance through both
incremental and innovative technological improvements.
Quantitative
process-improvement objectives for the organization are established,
continually revised to reflect changing business objectives, and used as
criteria in managing process improvement.
